codex BALKUDROP
Simply laying big tiles.
BalkuDrop is ideally suited for the solid and safe installation of self-supporting tile and natural stone coverings in outdoor areas.
The popular classic among the installation methods - the notch method - in combination with the 2-component BalkuDrop system enables rapid work progress. With a low installation height of only 4 cm, it can be used on almost all surfaces.
YOUR ADVANTAGES
- Generous cavity structure
- Secure drainage
- No lime scale and efflorescence thanks to cement-free binder
- Low built-up height from 4 mm
- Rapid work progress due to less working steps
TOP PROPERTIES
- Quickly ready for foot traffic and further work
(after appr. 2 days) - High safety as tensions get absorbed
- Cementitious-free binding agent
- For ceramic- and natural stone from 2 cm thick und 40/40 cm
- For concrete blocks, at least 4 cm thick

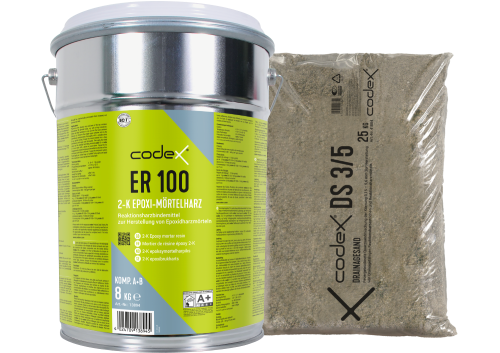

PRODUCTS USED
- Sealing sheet UZIN RR 185
- Self-adhesive sealing tape BST 150
- Expansion strip 8/100
- Drainage sand DS 3/5
- 2-K Epoxy-mortar codex ER 100
- Epoxy-grout codex X-Fusion
APPLICATION - Step by Step
Please note
- In case of uneven waterproofing surfaces a drainage mat must be used (Pooling)
- Regardless of the size of the tiles to be laid, the distance between the notches may not exceed 40 cm.
CODEX PRODUCTS
BST 150 Abdichtungsband
Das selbstklebende Dichtband codex BST 150 ist Bestandteil der Verbundabdichtung unter keramischen Oberbelägen und für die Eck- und Übergangsbereiche, sowie für codex…
ER 100 2-K Epoxi-, Grundier- und Mörtelharz
codex ER 100 ist ein zweikomponentiges Epoxidharz zur Grundierung sowie zum Anmischen von Epoxidharzmörteln. Codex ER 100 ist sehr anwendungsfreundlich, früh belegreif und…
