Turbolight®-System
FOR MULTI-PURPOSE SUBSTRATE RESTORATION
Installing tiles and natural stone securely onto old and uneven substrates.
The UZIN Turbolight® system is a rapid construction and renovation system for ceramic tiles and natural stone. It enables large floor unevenness to be levelled quickly, flexibly and with an extremely low weight per unit area.
YOUR ADVANTAGES
- Low minimum system height from 5 mm
- Suitable for all types of floor coverings, particularly large format tiles
- Low basis weight thanks to low density
- Fast construction, perfect for scheduled construction sites
- Impact sound absorption up to 10 dB
- High load capacity (3 or 4 kN possible for precast screeds with multiple layers)
- Usabel as system in combination with AEG surface heating system
The UZIN Turbolight®-System can be installed using common installation techniques and. The system is water tolerant and suitable for damp rooms when used in conjunction with codex NC 395 instead of codex FM 50 Turbo. The Turbolight® surface is suitable for the direct installation of tiles and natural stone which can be installed using standard methods and adhesives.

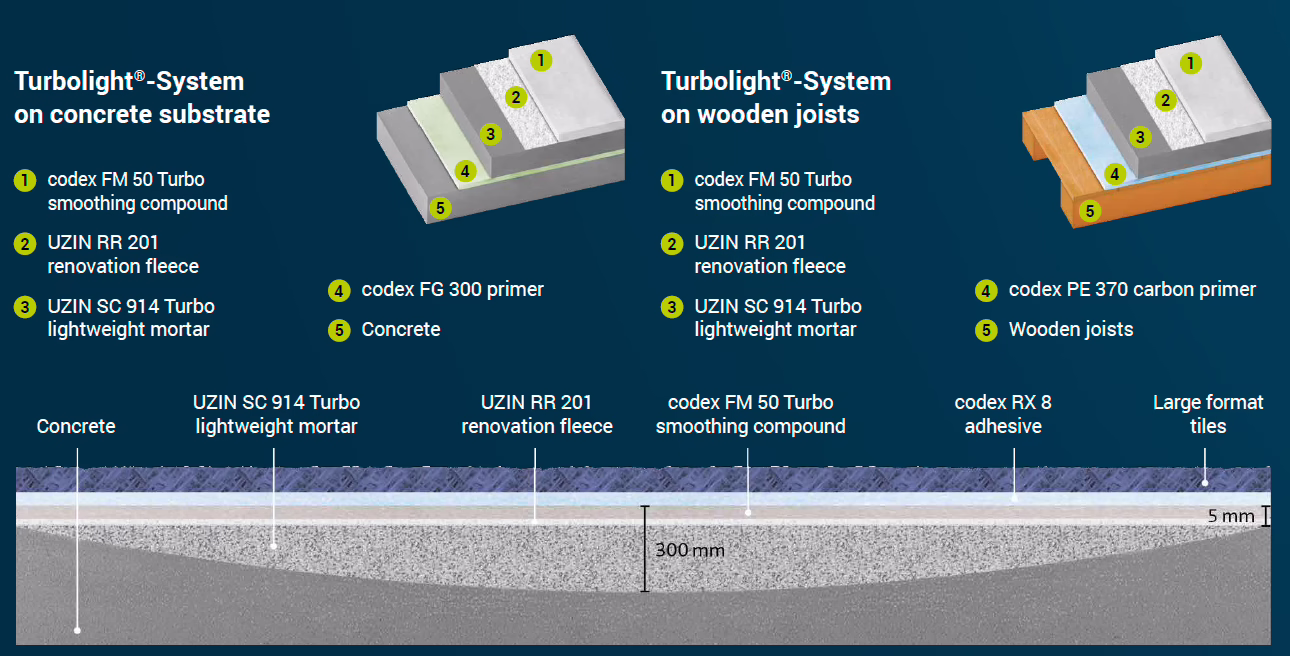

Turbolight can be installed on both, concrete substrates and wooden joists, shown in two diagrams. Above this the construction is shown as a detailed cross-section
Turbolight can be installed on both, concrete substrates and wooden joists, shown in two diagrams. Above this the construction is shown as a detailed cross-section

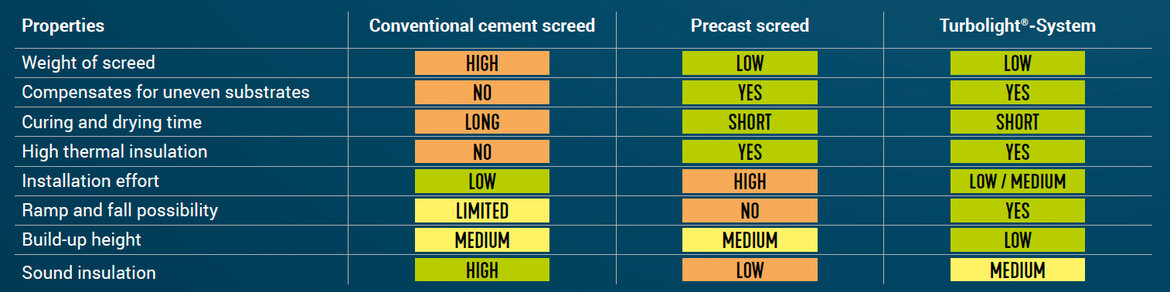

Turbolight compared to other systems
Advantages of Turbolight shown as a comparison with other systems based on conventional cement screed or precast screed.
TOP PROPERTIES
- Rapid hardening system (UZIN SC 914 Turbo after 24 h/ codex FM 50 Turbo after 2h)
- Easy application, deformation-free and low-tension
- Homogeneous composite system - No setting or moving of the filling
- High load capacity from 3 to 4 kN
- For ramp formation and falls by using codex NC 395

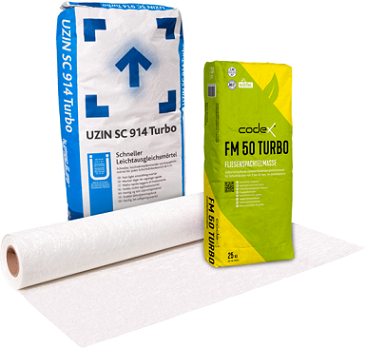

PRODUCTS USED

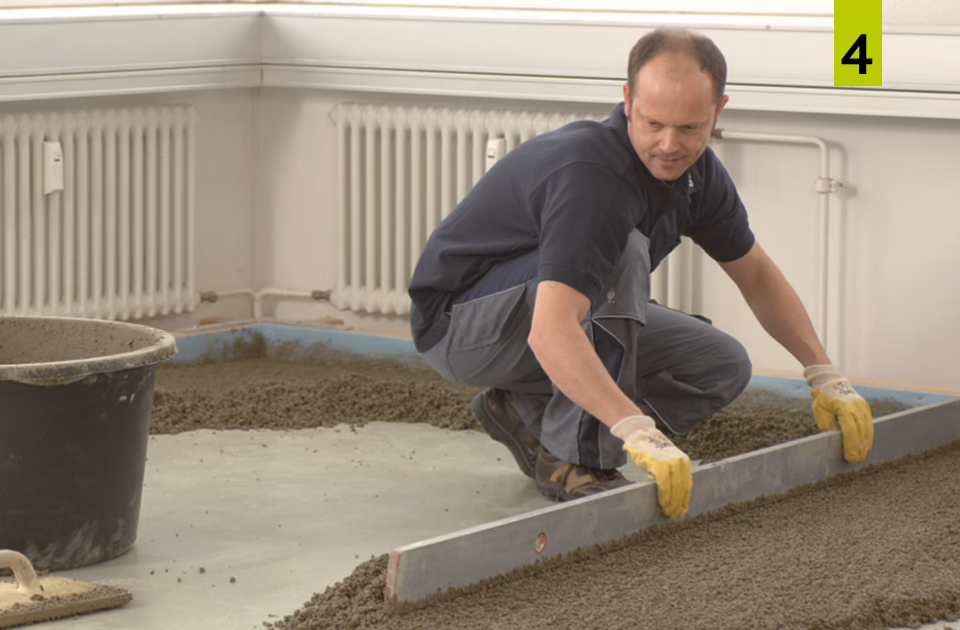

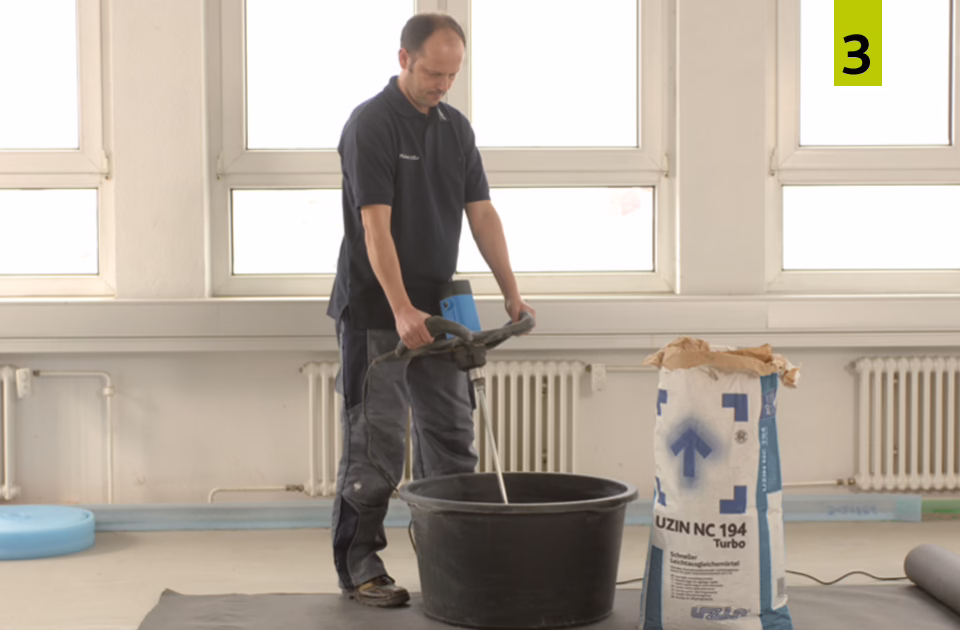

- Light levelling mortar UZIN SC 914

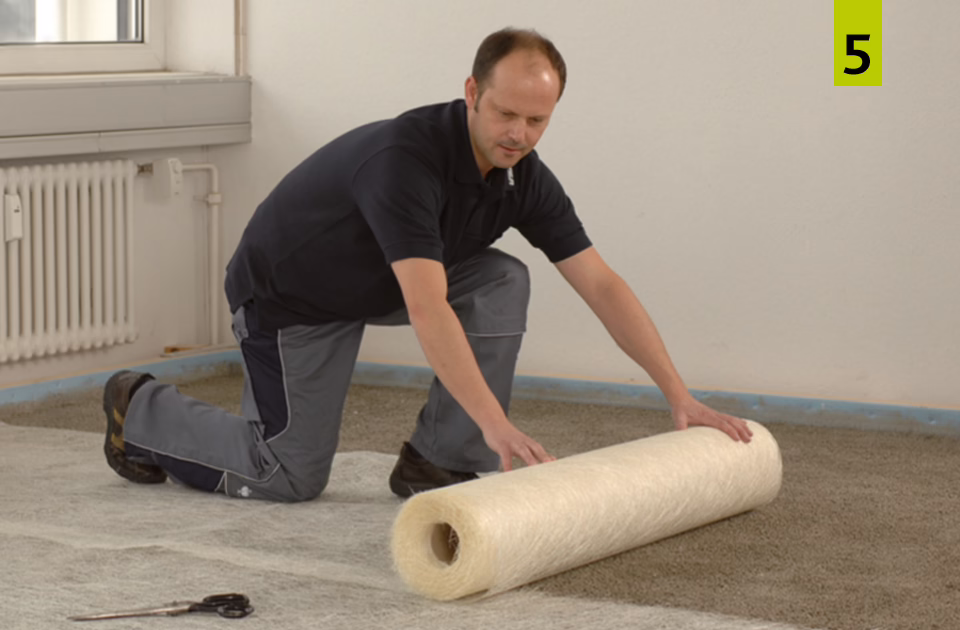

- Renovation fleece UZIN RR 201

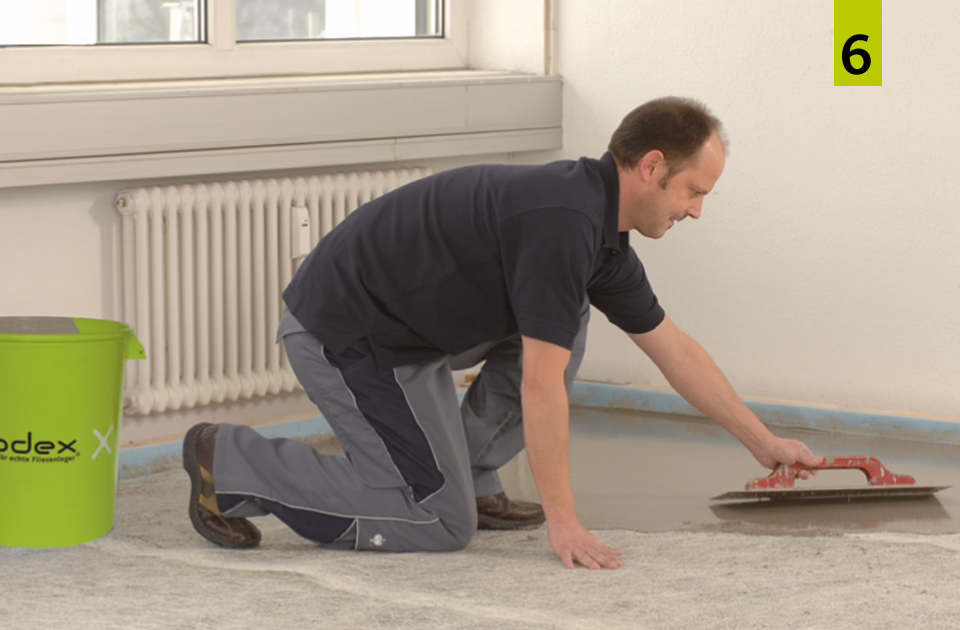

- Tile filler codex F 50 Turbo
- Alternative for FM 50 Turbo for waterproof construction: codex NC 395

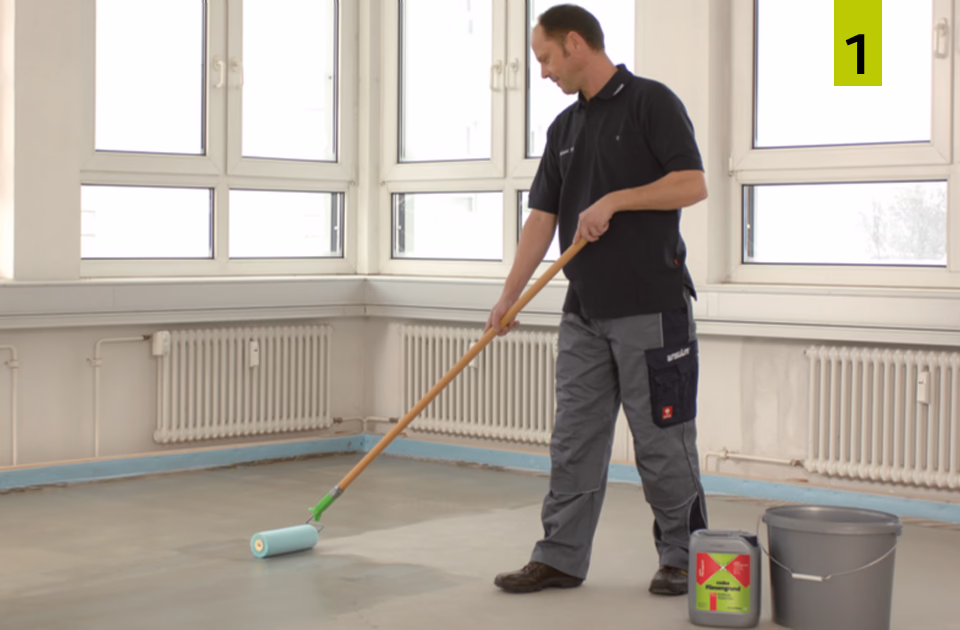

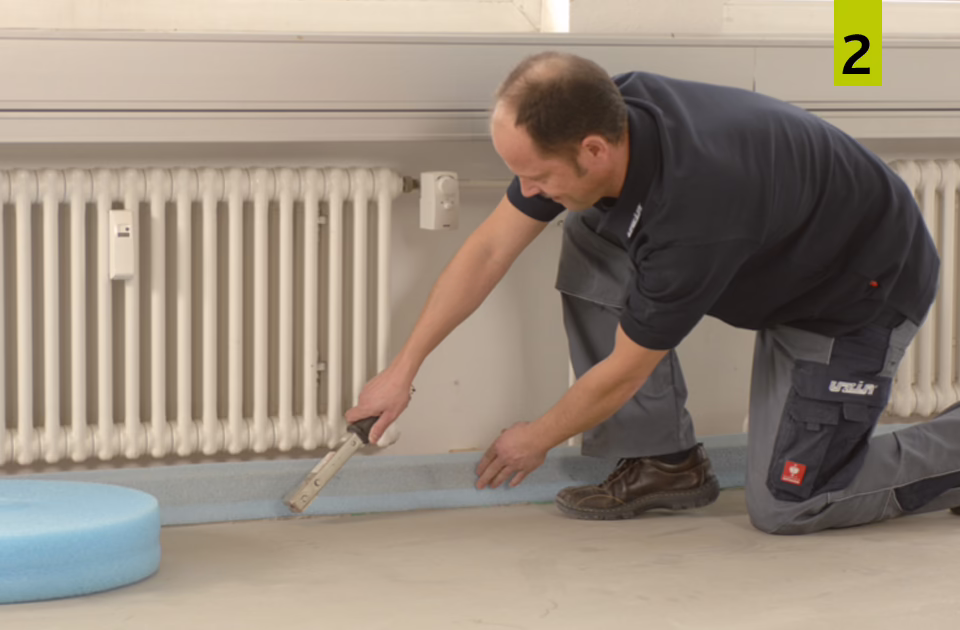

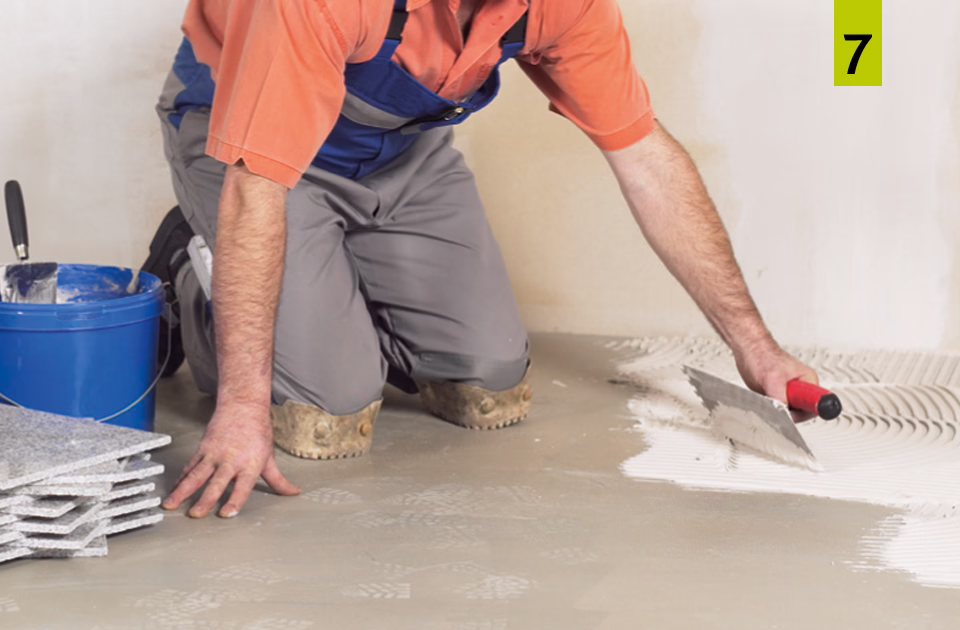

APPLICATION - STEP BY STEP
